Dettagli del prodotto
Luogo di origine: Cina
Marca: CHNSpec
Certificazione: CE
Numero di modello: THC-07
Termini di trasporto & di pagamento
Quantità di ordine minimo: 1
Prezzo: Negoziabile
Imballaggi particolari: Scatola di cartone
Tempi di consegna: 5-7 giorni
Termini di pagamento: T/T
Capacità di alimentazione: 1000 al mese
Intervallo di lunghezze d'onda: |
400-700nm |
Intervallo di lunghezza d'onda: |
10 nm |
Apertura di misura: |
21 mm, 7 mm |
Struttura del percorso ottico: |
d/0 |
Precisione di trasmittanza: |
Migliore di ±1% |
Precisione della foschia: |
Migliore di ±1% |
Intervallo di lunghezze d'onda: |
400-700nm |
Intervallo di lunghezza d'onda: |
10 nm |
Apertura di misura: |
21 mm, 7 mm |
Struttura del percorso ottico: |
d/0 |
Precisione di trasmittanza: |
Migliore di ±1% |
Precisione della foschia: |
Migliore di ±1% |
Product Introduction

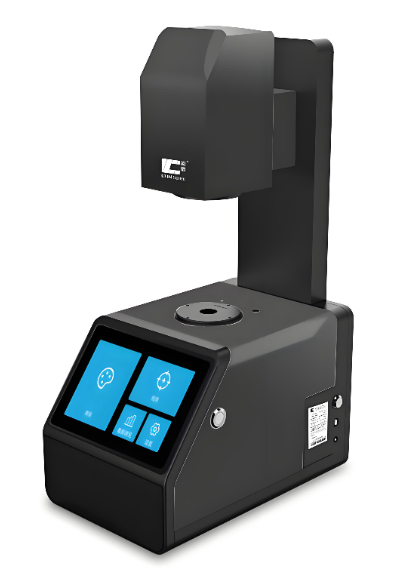

The The THC-07 Transmittance and Haze Meter adopts a full-spectrum LED light source and a spectral sensor design, used to measure haze, transmittance, and clarity parameters of various transparent and semi-transparent materials such as plastics, glass, and films. It can also display the transmittance spectral curve. The instrument features a 7-inch touch screen design, making operation simple and convenient. The THC-07 Transmittance and Haze Meter uses an open measurement area and supports both horizontal and vertical measurement modes, allowing the detection of liquids and large-sized materials. The THC-07 Transmittance and Haze Meter is also equipped with dual apertures of 21mm and 7mm, enabling the measurement of small-sized samples. Furthermore, it comes with PC software that supports data export and report printing.
Product Features
It can support both ASTM and ISO standards to meet the test standard requirements of different users, and also supports ISO standards without compensation ports.
The instrument can measure multiple parameters such as haze, transmittance, liquid color, color difference, clarity, turbidity, etc. of various transparent and translucent materials such as plastics, glass, films, etc., and can display the transmittance spectrum curve.
It uses a 7-inch IPS smart screen, does not require any buttons to operate, has a good human-computer interaction interface, and is extremely easy to operate.
The measurement results can show the transmittance of the material in different wavelength bands between 400-700nm. Through this transmittance performance data, various optical properties of the material can be evaluated.
The instrument has good repeatability, with haze repeatability ≤0.03, transmittance repeatability ≤0.03, and color difference repeatability ≤0.03, which is comparable to imported brands.
The instrument adopts a dual-aperture design of 21mm and 7mm, and the appropriate test aperture can be selected according to the size of the material being tested.
The instrument has an open measurement area and can be placed vertically or horizontally. When placed horizontally, it can be used with a positioning bracket.
The instrument comes with PC software and can be connected via a USB port, enabling online measurements, data export, and test report printing.
The instrument's haze measurement and color difference measurement are guaranteed to pass the inspection of the National Metrology Institute.
Product Parameters
| Model | THC-07 |
| Optical Path Structure | D/0 |
| Wavelength Range | 400-700nm |
| Wavelength Interval | 10nm |
| Measurement Aperture | 21mm,7mm |
| Measurement Conditions |
Light Source:CIE-A,CIE-C,CIE-D65,A,C,D50,D55,D65,D75,F1,F2,F3,F4,F5,F6,F7,F8,F9,F10,F11,F12,CMF,U30,DLF,NBF,TL83,TL84 Observer Angle: 2°, 10° |
| Measurement Time | Approximately 3s |
| Measurement Parameters | Haze (HAZE), Total Transmittance (T), Spectral Transmittance, Clarity |
| Transmittance Resolution | 0.01% |
| Transmittance Accuracy | Better than ±1% |
| Transmittance Repeatability | ≤0.03(without preheating; standard deviation of 30 consecutive measurements on a standard haze plate with haze ≈30, measured at 3s intervals) |
| Haze Resolution | 0.01% |
| Haze Accuracy | Better than ±1% |
| Haze Repeatability | ≤0.03(without preheating; standard deviation of 30 consecutive measurements on a standard haze plate with haze ≈30, measured at 3s intervals) |
| Powered Supply | DC12V/3A |
| Display Screen | 7-inch Touch Screen |
| Data Storage | 20,000 records |
| Language | Chinese, English |
| Interface | USB(Type-B) |
| Operating Temperature Range | 5–40℃, relative humidity ≤80% (at 35℃), no condensation |
| Storage Temperature Range | -20–45℃, relative humidity ≤80% (at 35℃), no condensation |
| Instrument Dimensions | Length × Width × Height: 310mm × 215mm × 540mm |
| Instrument Weight | 5300g |
